Industrial PCs/ Industrial Computer Module/ Industrial Computer Module/ RK3568 Industrial Box PC
RK3568 Industrial Box PC

Model:

X8-RK3568-F9
RK3568-F9 主图1.jpg
RK3568-F9 主图2.jpg
RK3568-F9 主图3.jpg
RK3568-F9 主图4.jpg
RK3568-F9 主图5.jpg
RK3568-F9 主图6.jpg
RK3568-F9 主图7.jpg
RK3568-F9 主图8.jpg
RK3568-F9 主图1.jpg
RK3568-F9 主图2.jpg
RK3568-F9 主图3.jpg
RK3568-F9 主图4.jpg
RK3568-F9 主图5.jpg
RK3568-F9 主图6.jpg
RK3568-F9 主图7.jpg
RK3568-F9 主图8.jpg

  • RK3568 Quad-core Processor with 0.8TOPS AI Acceleration

  • Dual Gigabit Ethernet, 4K HDMI + VGA Dual Display

  • Ubuntu Linux Ready

  • Fanless Industrial Design, -20℃~60℃ Wide Temp

  • Ultra-lightweight 0.55kg Compact Chassis to Minimize Space

  • Supports Versatile Desktop, Wall-mount, and VESA Installations

  • Ideal for Industrial Automation, Edge Computing, IIoT and Smart Retail

Data sheet Send Inquiry

Powered by the Rockchip RK3568 processor, this fanless Industrial Box PC delivers reliable edge computing performance for industrial automation, Industrial IoT, and smart manufacturing. Featuring dual Gigabit Ethernet, 4K HDMI + VGA dual-display output, Ubuntu Linux support, and a compact fanless design, it provides a stable and flexible platform for data acquisition, machine control, IoT gateways, and edge data processing. Its industrial-grade design ensures dependable 24/7 operation in demanding environments.

Specification X8-F9-RK3568
  • Part No.
    X8-F9-RK3568
  • Get A Quote
  • System

    SOC

    Cortex-A55

    CPU

    RK3568

    NPU

    0.8TOPS

    Memory

    2GB LPDDR4

    Storage & Expansion

    16GB eMMC

  • Video

    GPU

    ARM G52 2EE, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1Built-in high-performance 2D acceleration hardware

    Hardware Codec

    Supports 4K 60fps H.265/H.264/VP9 video decodingSupports 1080P 60fps H.265/H.264 video encoding Supports 8M ISP and HDR

    Display Interfaces

    1 × HDMI 2.0, supports 4K@60fps output VGA maximum resolution: 1920×1080@60Hz

  • Network

    Ethernet

    Dual Gigabit Ethernet (RJ45, 1000 Mbps, supports expansion)

    Wireless Network

    Supports Wi-Fi + Bluetooth module (M.2 PCIe, optional)

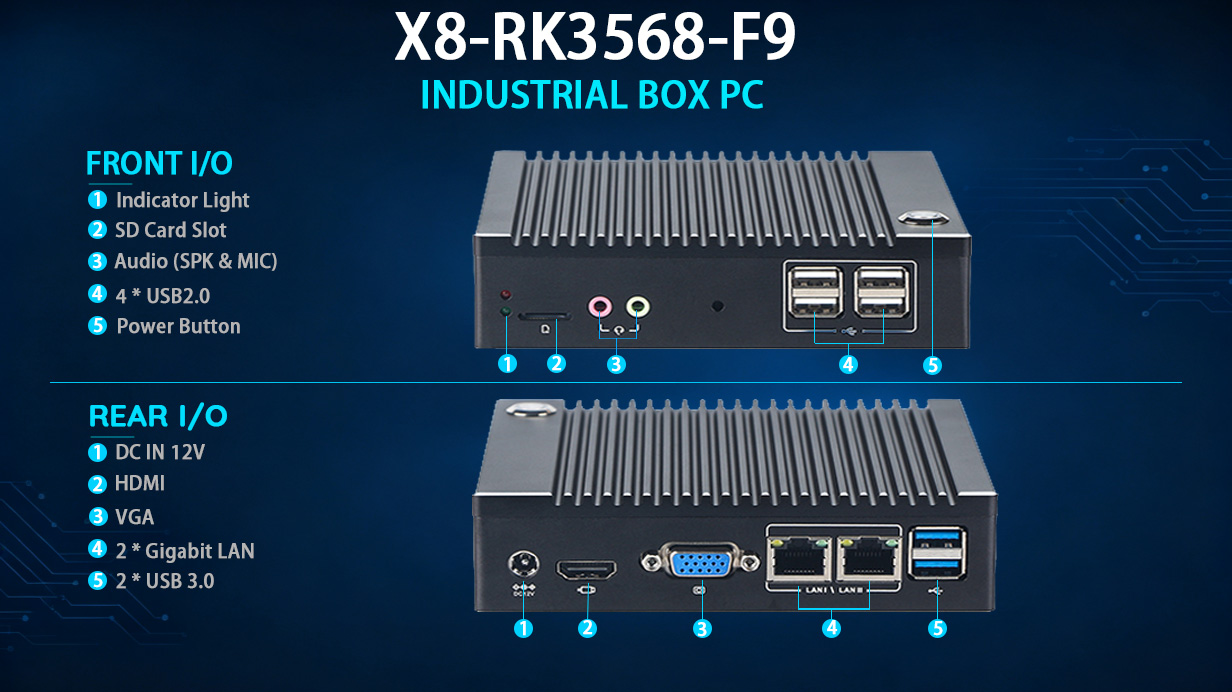

  • I/O

    USB

    2 × USB 3.0, 4 × USB 2.0

    RS232

    Not support

    Audio

    AUX 3.5mm headphone output + AUX 3.5mm microphone input

    SIM

    Not support

  • Others

    Watchdog

    Optional

    RTC

    Support

  • Power Input

    Power Input

    DC 12V-2A

    Buttons/Indicators

    Support

  • Physical Parameters

    Chassis Dimensions

    133.8mm×126.6mm×36.5mm

    Package Dimensions

    245mm×190mm×60mm

    Net Weight

    0.55kg (0.88lbs)

    Gross Weight

    1.2kg (2.2lbs)

  • Software

    Operating System

    Android11，Ubuntu20.04，KylinV10

  • Environment

    Operating Temperature

    -10~40°C (14~104°F)

    Storage Temperature

    -10~40°C (14~104°F)

    Operating/Storage Humidity

    0~85% RH (non-condensing)

    Safety Certifications

    CCC，CE，ISO

Get A Quote
System
  • SOC

    X8-F9-RK3568

    Cortex-A55

  • CPU

    X8-F9-RK3568

    RK3568

  • NPU

    X8-F9-RK3568

    0.8TOPS

  • Memory

    X8-F9-RK3568

    2GB LPDDR4

  • Storage & Expansion

    X8-F9-RK3568

    16GB eMMC

Video
  • GPU

    X8-F9-RK3568

    ARM G52 2EE, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1Built-in high-performance 2D acceleration hardware

  • Hardware Codec

    X8-F9-RK3568

    Supports 4K 60fps H.265/H.264/VP9 video decodingSupports 1080P 60fps H.265/H.264 video encoding Supports 8M ISP and HDR

  • Display Interfaces

    X8-F9-RK3568

    1 × HDMI 2.0, supports 4K@60fps output VGA maximum resolution: 1920×1080@60Hz

Network
  • Ethernet

    X8-F9-RK3568

    Dual Gigabit Ethernet (RJ45, 1000 Mbps, supports expansion)

  • Wireless Network

    X8-F9-RK3568

    Supports Wi-Fi + Bluetooth module (M.2 PCIe, optional)

I/O
  • USB

    X8-F9-RK3568

    2 × USB 3.0, 4 × USB 2.0

  • RS232

    X8-F9-RK3568

    Not support

  • Audio

    X8-F9-RK3568

    AUX 3.5mm headphone output + AUX 3.5mm microphone input

  • SIM

    X8-F9-RK3568

    Not support

Others
  • Watchdog

    X8-F9-RK3568

    Optional

  • RTC

    X8-F9-RK3568

    Support

Power Input
  • Power Input

    X8-F9-RK3568

    DC 12V-2A

  • Buttons/Indicators

    X8-F9-RK3568

    Support

Physical Parameters
  • Chassis Dimensions

    X8-F9-RK3568

    133.8mm×126.6mm×36.5mm

  • Package Dimensions

    X8-F9-RK3568

    245mm×190mm×60mm

  • Net Weight

    X8-F9-RK3568

    0.55kg (0.88lbs)

  • Gross Weight

    X8-F9-RK3568

    1.2kg (2.2lbs)

Software
  • Operating System

    X8-F9-RK3568

    Android11，Ubuntu20.04，KylinV10

Environment
  • Operating Temperature

    X8-F9-RK3568

    -10~40°C (14~104°F)

  • Storage Temperature

    X8-F9-RK3568

    -10~40°C (14~104°F)

  • Operating/Storage Humidity

    X8-F9-RK3568

    0~85% RH (non-condensing)

  • Safety Certifications

    X8-F9-RK3568

    CCC，CE，ISO
